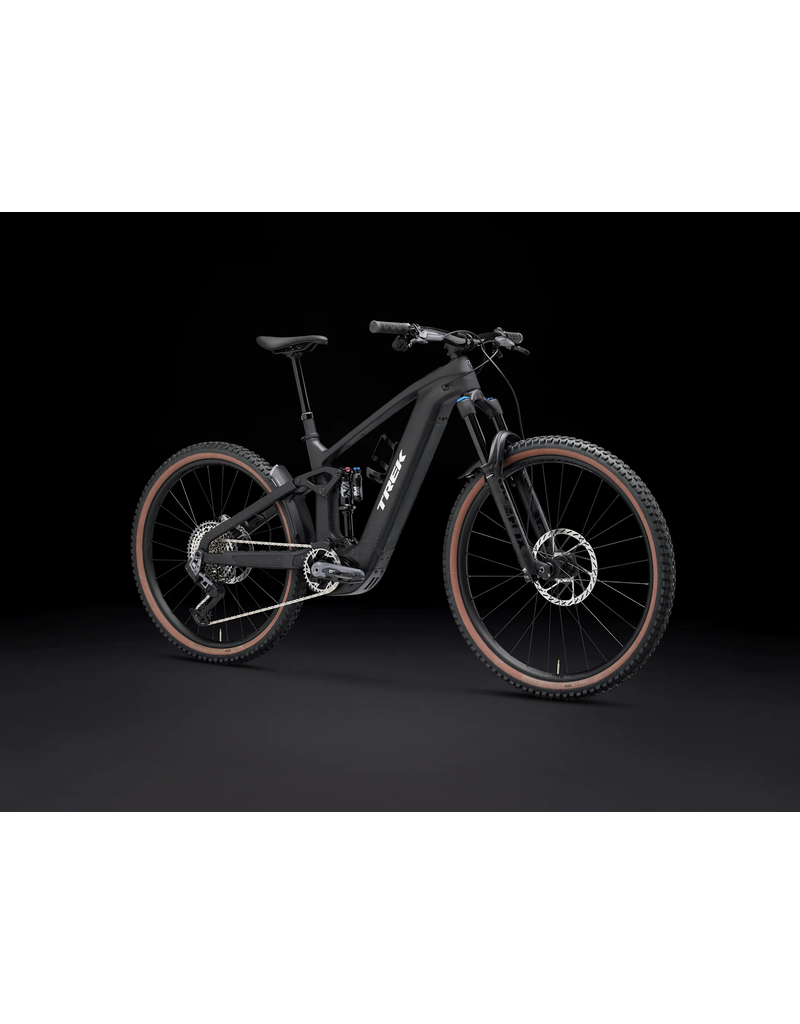

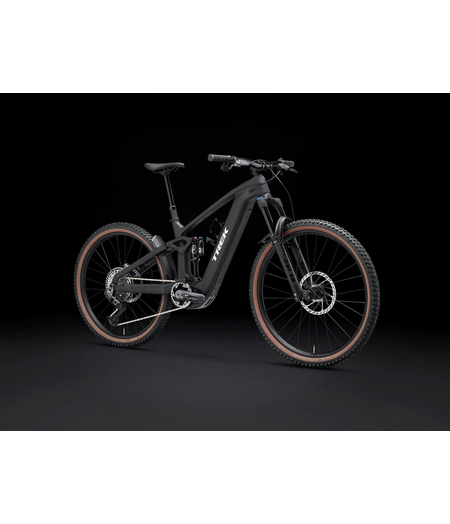

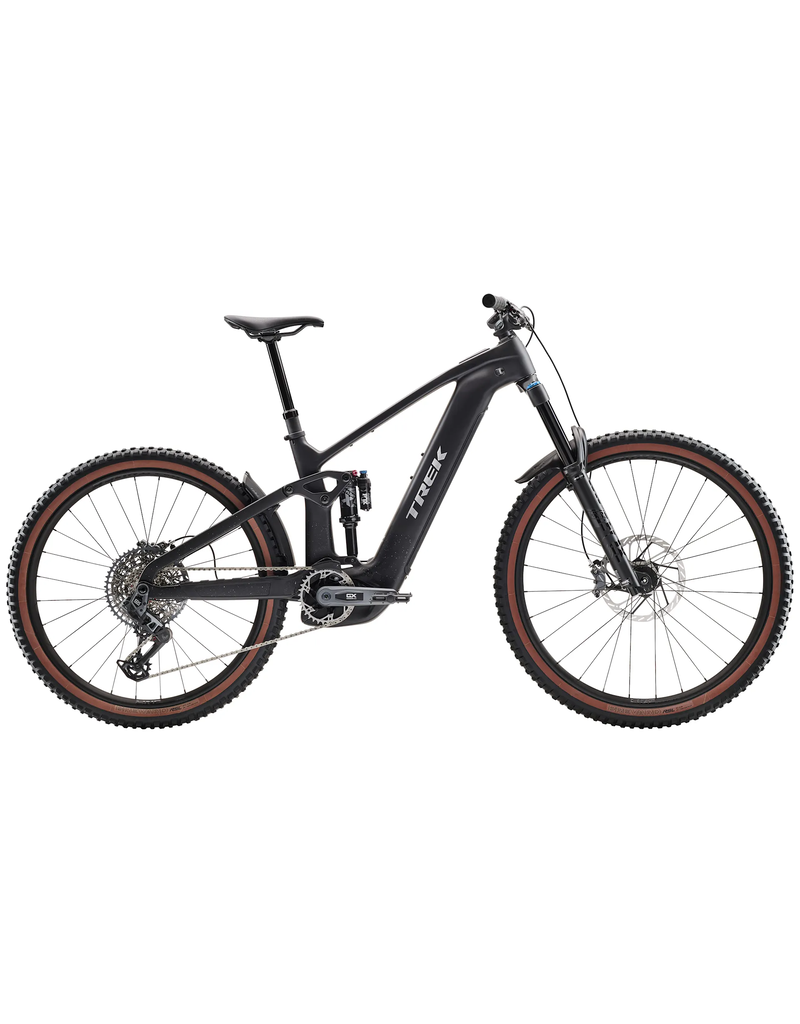

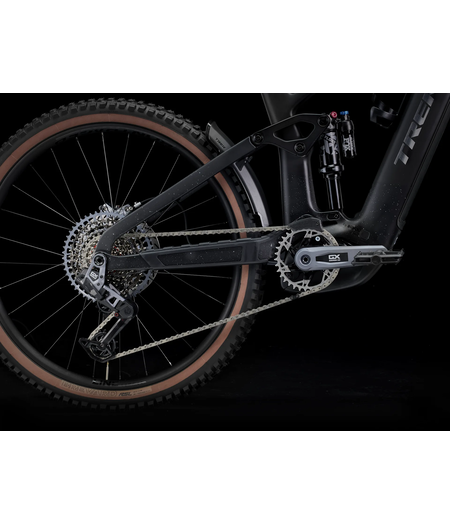

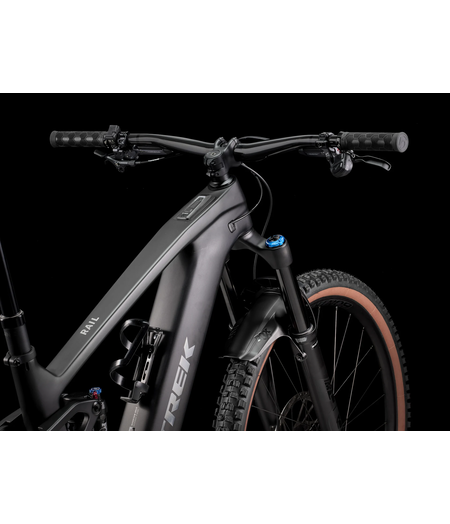

Rail+ 9.8 GX AXS T-Type Gen 5 Deep Smoke
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information
The Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps. With 160 mm front and rear travel, it's ready to rip through the rough, and it's backed by a powerful Bosch Performance CX drive system that makes long climbs and fast laps a breeze. It packs in adjustable geometry that lets you customise your bike for how and where you ride, a massive battery that keeps you going lap after lap, and a SRAM GX AXS wireless transmission for crisp shifts under load.
It's right for you if...
You chase big rides with even bigger terrain and need an e-bike that can keep up. You want plenty of suspension for gobbling up roots and rocks and a full-assist motor that doesn't wallow on punchy climbs. You care about upgrades where they matter most, like a carbon frame, upgraded suspension package and fully wireless SRAM transmission.
The tech you get

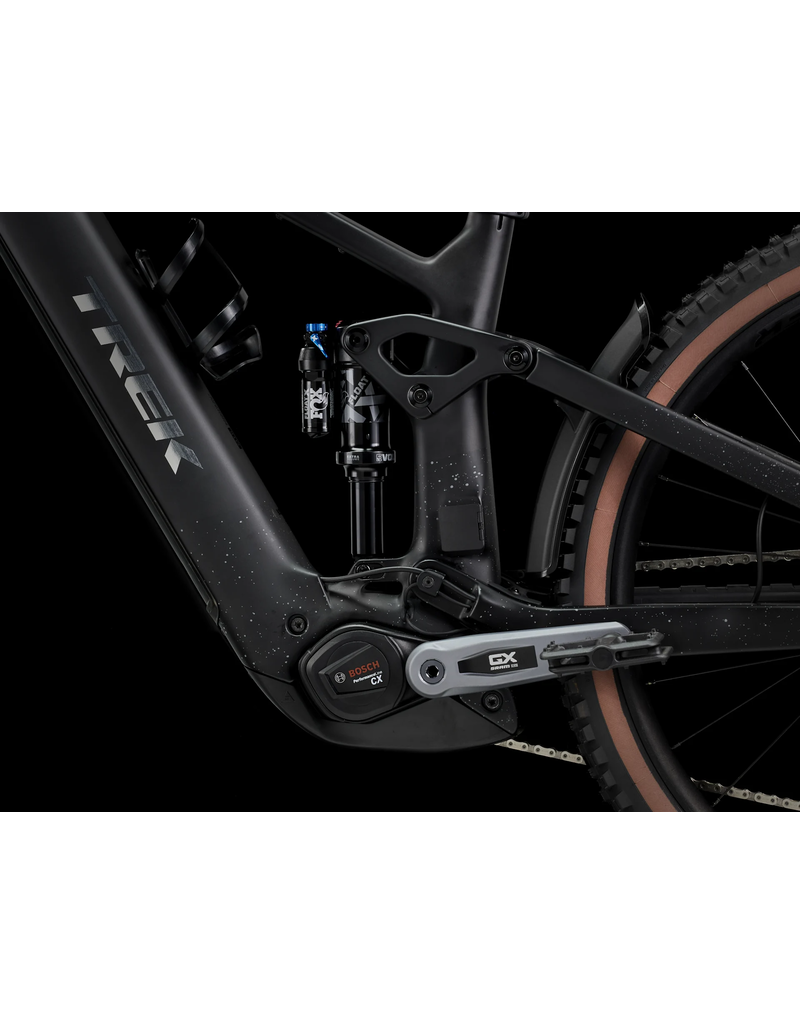

An OCLV Mountain Carbon frame with Bosch Performance CX system (85 Nm, 250 W) and a massive 800 Wh RIB 2.0 removable integrated battery. A 160 mm FOX Performance Elite Float 38 fork with Float EVOL spring and Grip X damper, and FOX Performance Elite Float X rear shock. Tubeless Ready Bontrager Line Comp 30 wheels, a wireless SRAM GX AXS transmission, 4-piston SRAM CODE Bronze hydraulic disc brakes and an internally-routed dropper post.
The final word
The Rail+ 9.8 is ready for epic rides that take you far beyond the beyond. With plenty of travel for rowdy terrain, a powerful motor for crushing big climbs, and a massive battery that keeps you going mile after mile, this beast of a bike is built for it all.
Why you'll love it
- The Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps
- You get upgrades where they matter, like a wireless SRAM transmission and RockShox suspension package
- You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability

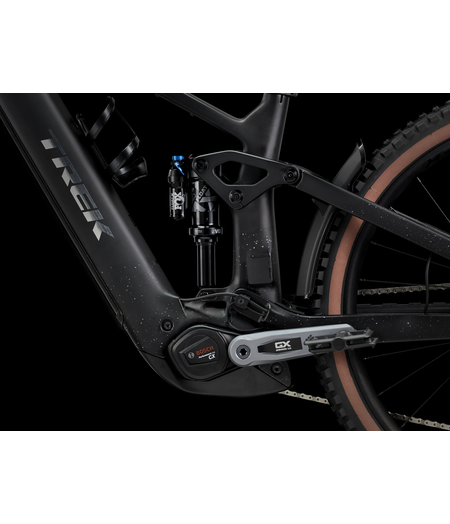

- The powerful Bosch Performance CX system goes full gas up steep climbs and keeps you cool for the descents
- The massive 800 Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage
*Please note – spec applies to all sizes unless listed separately
| Frame | OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel |
|---|---|
| Fork | Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt-X axle, 160 mm travel |
| Shock | Fox Performance Elite Float X, 2-position damper, 205mm x 65mm |
| Max compatible fork travel | 180mm |
| *Wheel front | Size: S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" |
|---|---|
| Size: M, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
|
| Wheel rear | Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5" |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre | Size: S, M, L, XL Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50" |
| Size: M, L, XL Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50" |
|
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 27.5x2.60", Fork: See manufacturer |
| Charger | Bosch standard 4A, 230V, smart system |
|---|---|
| Controller | Bosch System Controller BRC3100, smart system |
| Motor | Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
| Shifter | SRAM AXS POD |
|---|---|

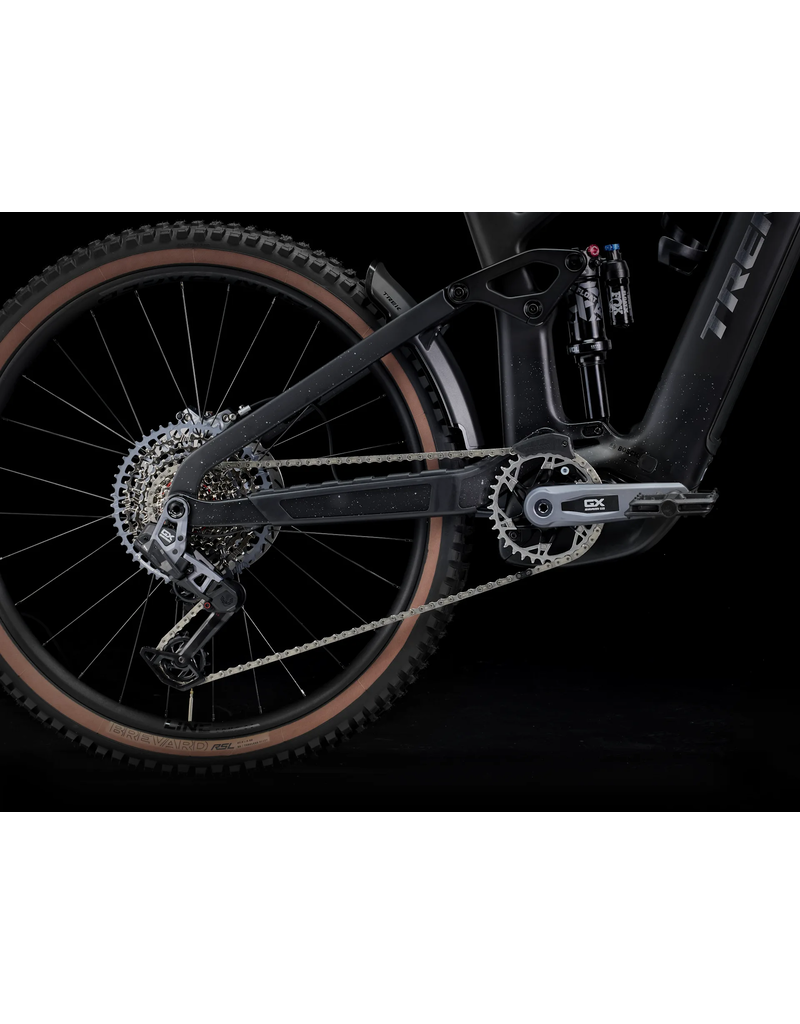

| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX, 160 mm length |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 36T |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost | Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: M, L, XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
|
| Size: L, XL Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
|

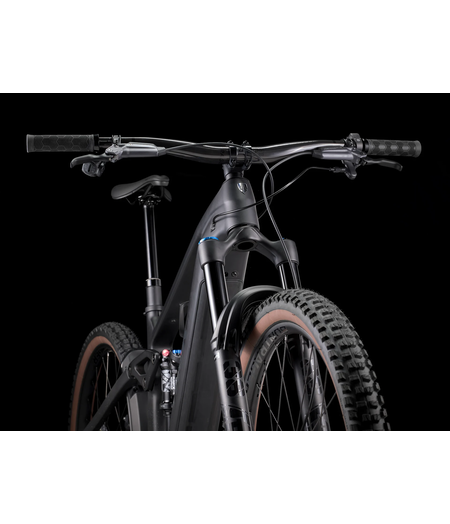

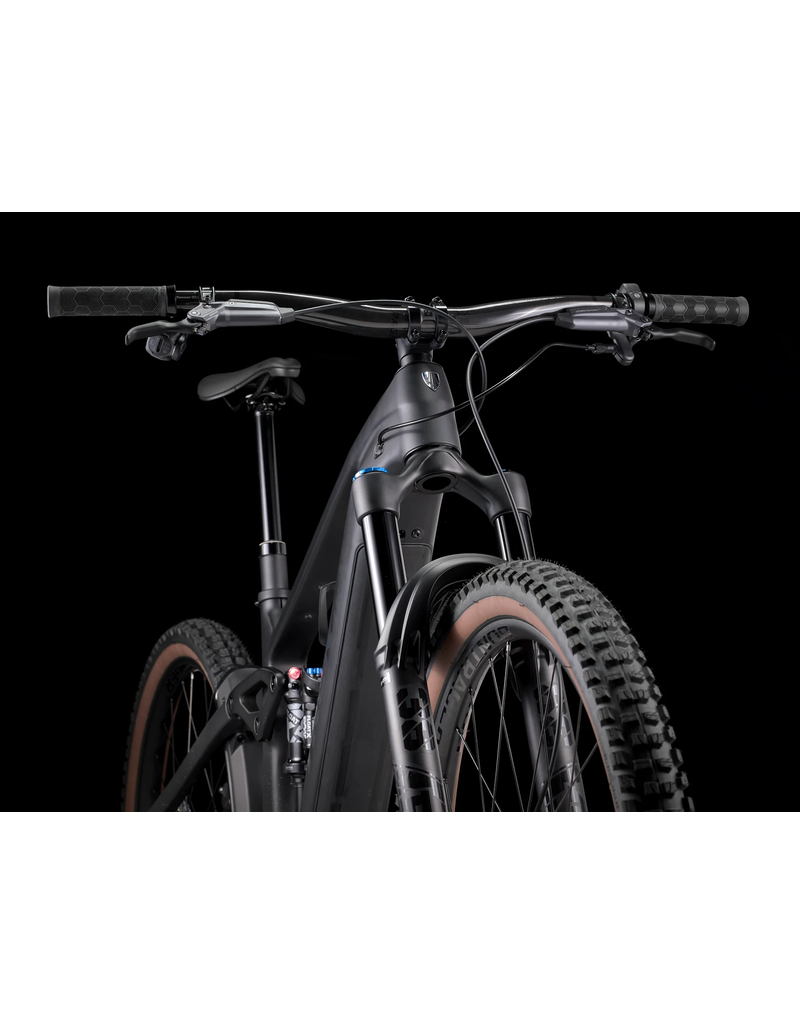

| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Stem | Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length |
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Brake | SRAM CODE Bronze 4-piston hydraulic disc |
| *Brake rotor | Size: S, M, L, XL SRAM 6-bolt, 200 mm |
| Size: S, M, L, XL SRAM HS2, 6-bolt, 220mm |
|
| Rotor size | Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer |
| Mudguard | Trek 27.5" custom fender |
|---|
| Weight | M - 24.18 kg / 53.31 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
