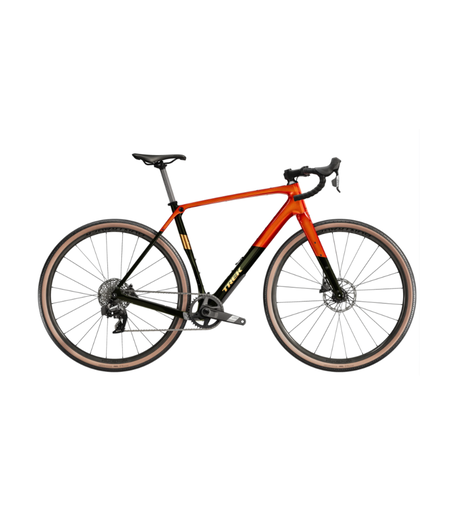

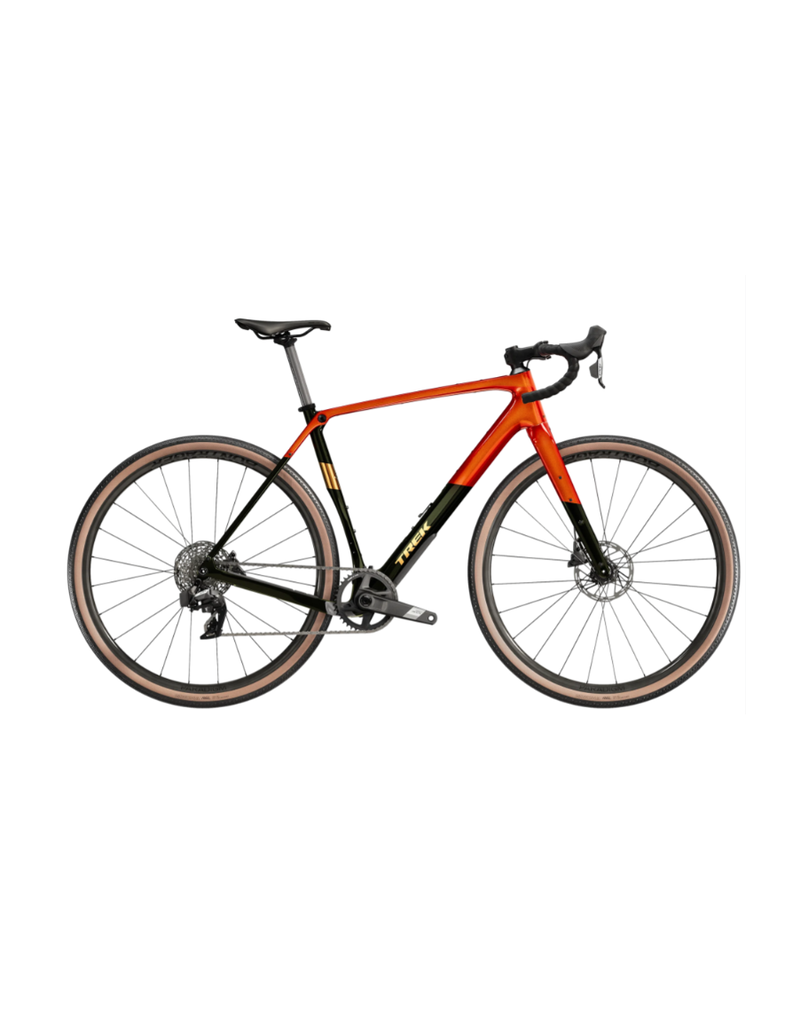

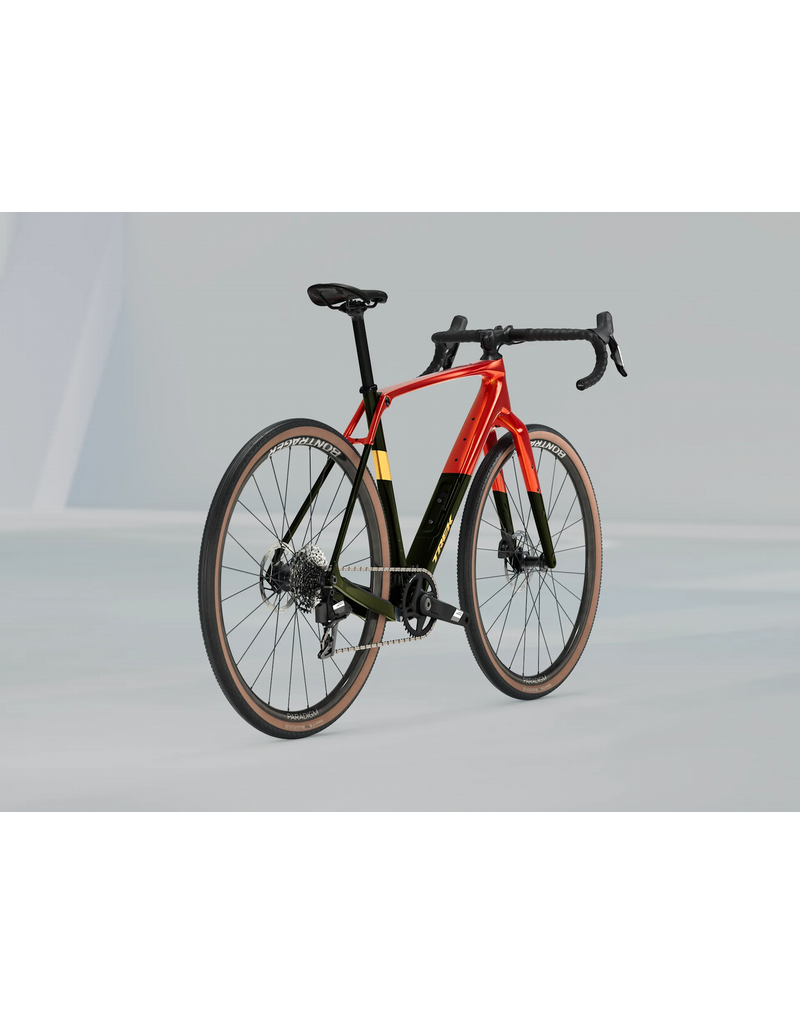

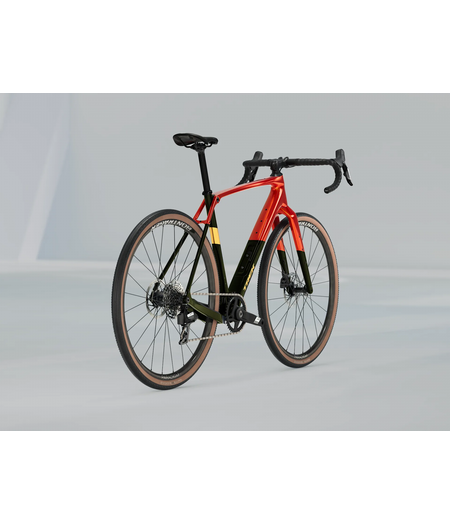

Checkpoint SL 5 AXS Gen 3 Lava/Black Olive
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information
The Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon. Its lightweight carbon frame is designed with comfort-focused geometry, room for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed comfort technology helps soak up jarring road vibrations, helping you float over chatter and potholes. It comes equipped with a wireless 12-speed SRAM Apex XPLR AXS drivetrain to deliver plenty of gears for exploring the dusty road.
It's right for you if...
You want a carbon gravel bike for exploring the beyond, and want to save on parts you can upgrade over time. You want the gravel-smoothing benefits of IsoSpeed tech that soaks up chatter from below so you can ride stronger for longer and plenty of mounts to carry all your gear and hydration.
The tech you get
A 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, frame and fork mounts, and clearance for 50 mm tyres (as measured). A 12-speed 1x SRAM Apex XPLR AXS fully wireless drivetrain, hydraulic disc brakes, carbon seat post, and Tubeless Ready Bontrager Paradigm SL wheels with 42 mm tyres.
The final word
When you're ready to load up and explore the road less travelled, reach for the Checkpoint SL 5 AXS Gen 3. This capable and comfortable gravel bike balances price and performance with a blend of components that deliver reliably and a frame that's packed with road-smoothing features.
Why you'll love it
- The Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bike-packing trips and more
- Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher for longer

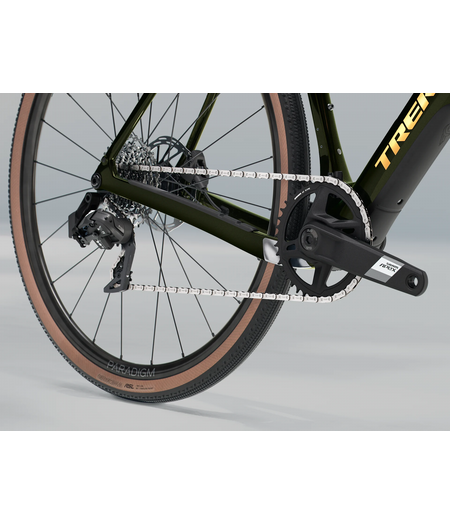

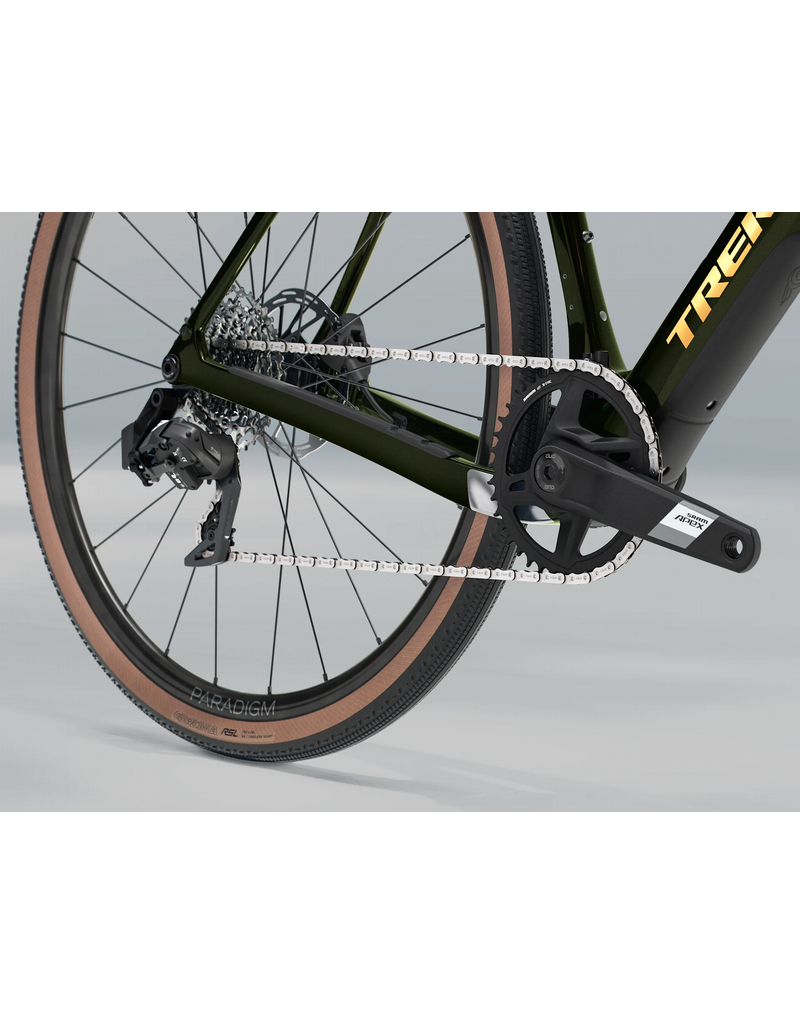

- A SRAM Apex XPLR AXS 12-speed drivetrain offers precise, fully wireless shifting that's made for the roughest roads
- Clearance for 50 mm tyres (as measured) means that you can add extra traction and cushion for rowdy gravel roads

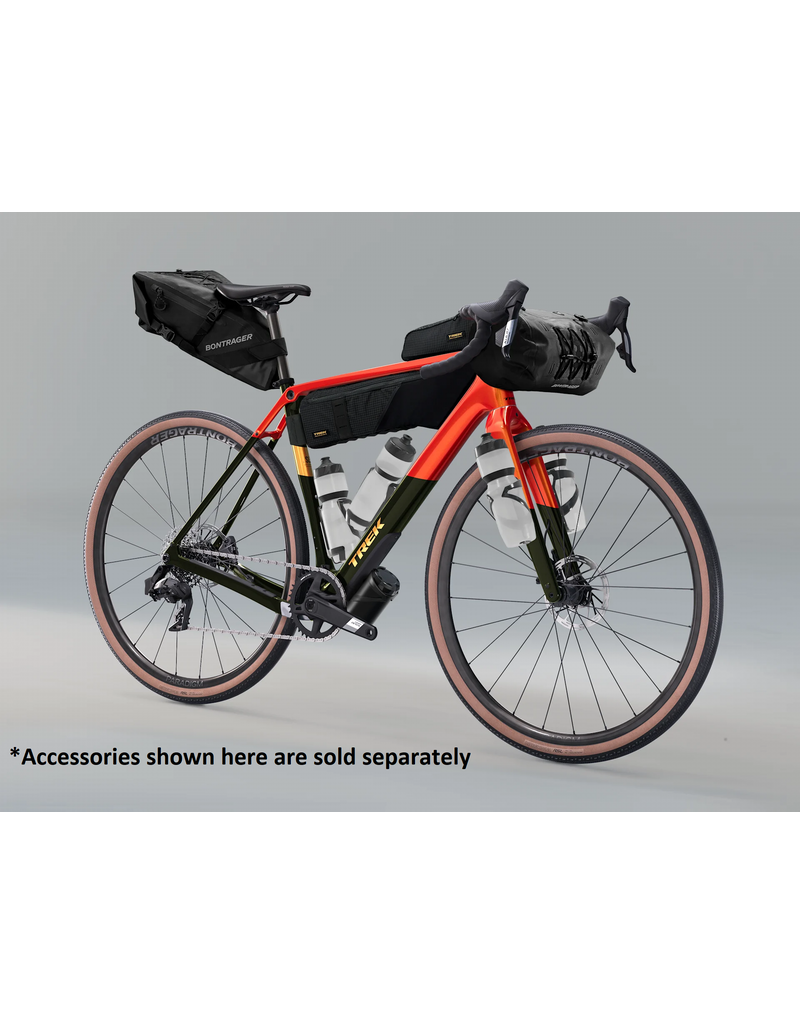

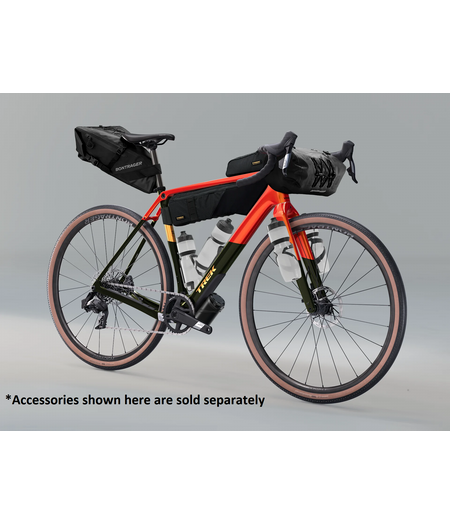

- You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, mudguards and Adventure Bags that were designed to perfectly fit the Checkpoint
- Dropper post and suspension fork compatible (except size XS)
*Please note – spec applies to all sizes unless listed separately
| Frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |
|---|---|

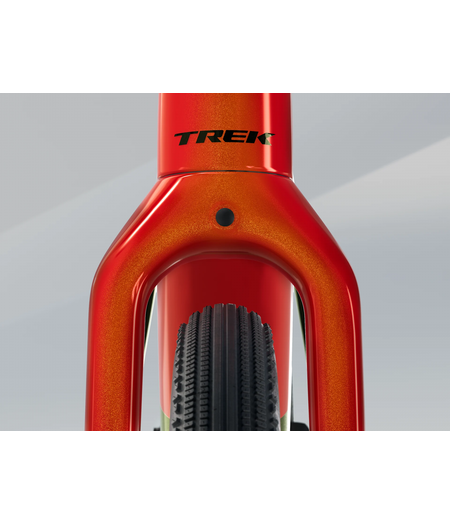

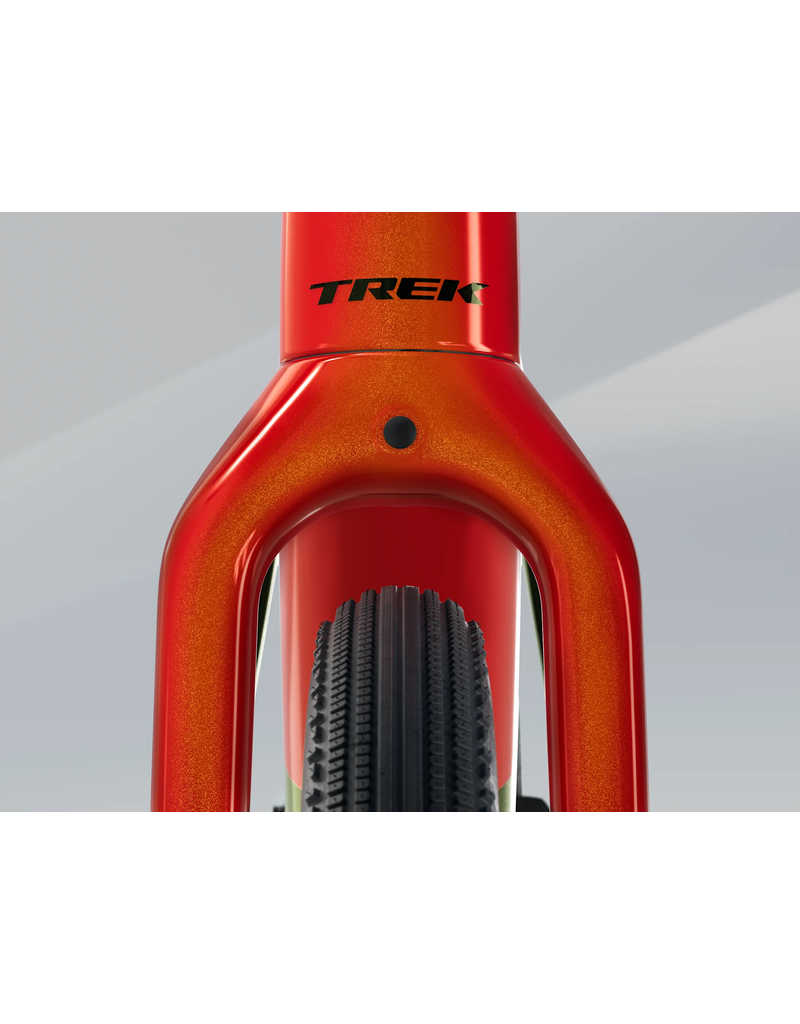

| Fork | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |
| Max compatible fork travel | 40 mm (XS: compatible with rigid fork only) See Checkpoint SL Gen 3 FAQ for compatible options |
| Weight | ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Battery | SRAM eTap battery pack (with charger) |
|---|
| *Shifter | Size: XS, S, M, ML, L, XL SRAM Apex, 12-speed |
|---|---|
| Size: XS, S, M, ML, L, XL SRAM Apex AXS, 12-speed |
|
| Size: XS, S, M, ML, L, XL SRAM Apex AXS, 12 speed |
|
| Size: XS, S, M, ML, L, XL SRAM Apex, 12 speed |
|
| Rear derailleur | SRAM Apex XPLR eTap AXS, 44T max cog |
| *Crank | Size: XS, S SRAM Apex 1, 40T, DUB Wide, 165 mm length |
| Size: M SRAM Apex 1, 40T, DUB Wide, 170 mm length |
|
| Size: ML, L SRAM Apex 1, 40T, DUB Wide, 172.5 mm length |
|
| Size: XL SRAM Apex 1, 40T, DUB Wide, 175 mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XPLR PG-1231, 11-44, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Max. chainring size | 1x:44 2x: 46/30 |
| Wheel front | Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples |
|---|---|
| Wheel rear | Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 50 mm without mudguards, 42 mm with mudguards |
| *Saddle | Size: XS, S Verse Short Comp, steel rails, 155 mm width |
|---|---|
| Size: M, ML, L, XL Verse Short Comp, steel rails, 145 mm width |
|
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |

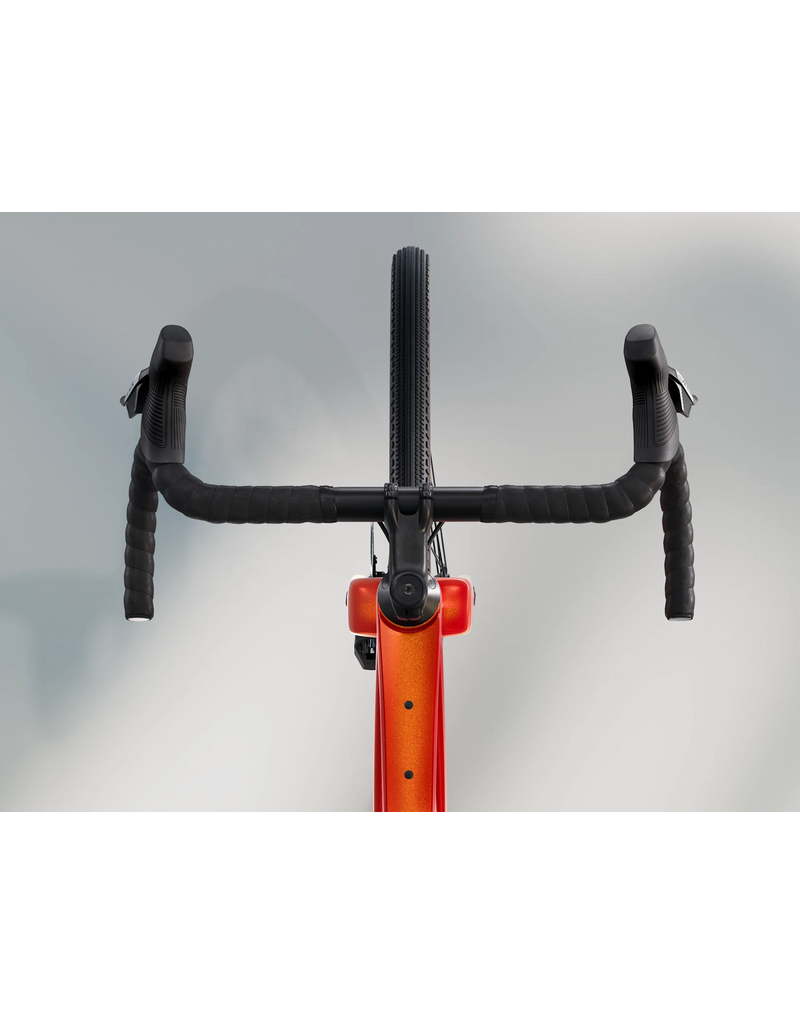

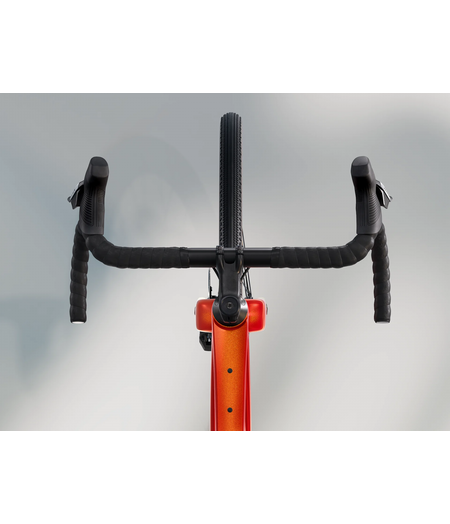

| *Handlebar | Size: XS Bontrager Elite Gravel, alloy, 40 cm width |
| Size: S, M Bontrager Elite Gravel, alloy, 42 cm width |
|
| Size: ML, L Bontrager Elite Gravel, alloy, 44 cm width |
|
| Size: XL Bontrager Elite Gravel, alloy, 46 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: XS Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
| Size: S Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
| Size: M, ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180mm front and rear |
| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
