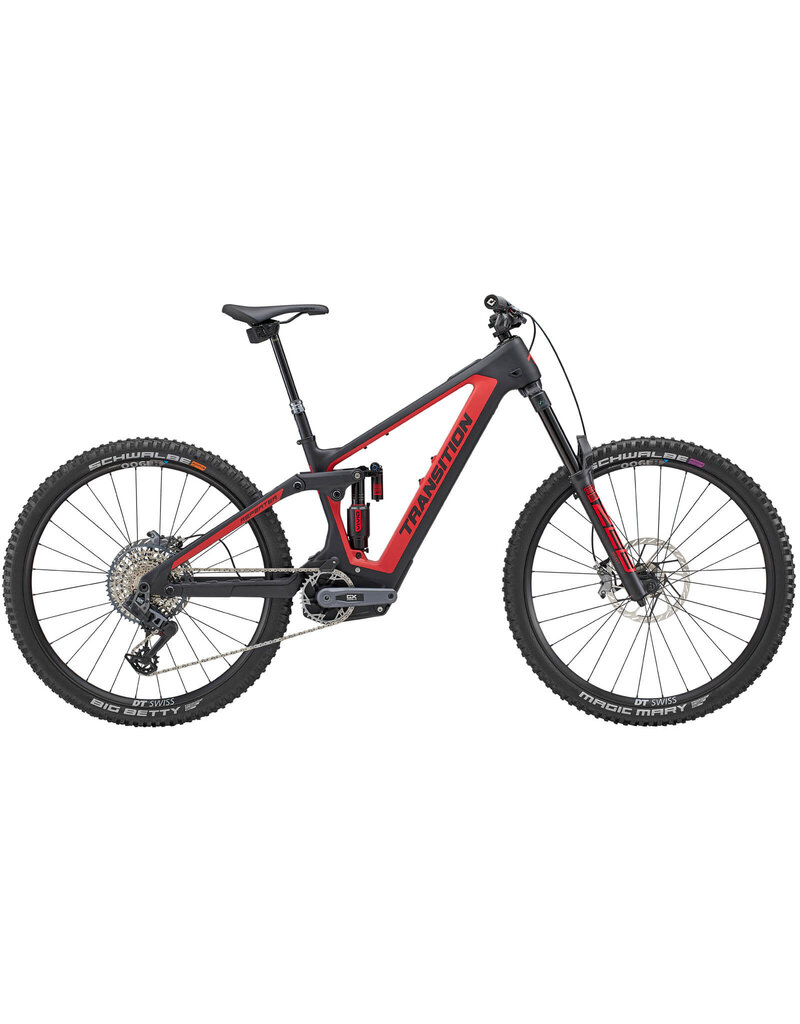

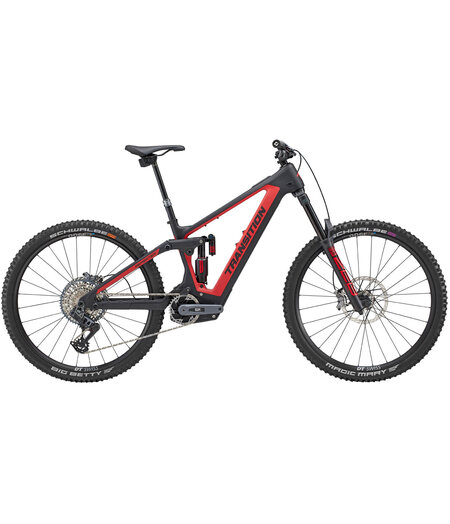

Repeater PT GX T-Type AXS Bonfire Red

Detail Information

The Hard Hitting Powerhouse

Tackle all the technical terrain you can handle.

The Repeater Powertrain takes your eMTB experience to a whole new level. This system harmoniously integrates the most complicated moving parts on an eMTB to create a simple, worry-free, and exhilarating ride. With 170mm travel front and rear, user tuneable motor and shifting modes, and wheel size options, the Repeater PT is a groundbreaking eMTB designed to fulfill all of your powered riding dreams. Utilizing the 90nm Eagle Powertrain Motor by Brose, SRAM 720wh battery, SRAM T-Type AXS Transmission, and the SRAM Powertrain brain, the Repeater PT marks a giant leap in the integration of motor and drivetrain, allowing you to give your full attention to enjoying the ride while auto shift handles the rest.

Giddy-Up Suspension

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

The GiddyUp suspension layout provides 170mm of travel from a 205 x 65mm shock, and is tuned to work correctly with both air and coil. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom-out control with air or coil shocks when things get rowdy.

With nearly 27% progression and an E-bike specific version of our GiddyUp suspension kinematic, the Repeater has an excellent balance of support and small bump sensitivity. The Repeater PT suspension is tuned for maximum traction that enhances both descending and climbing experiences while delivering a bottomless ride feel.

A suggested sag range of 28 - 34% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode to a more supple and active full-on party mode. Wherever you end up, you can focus on the trail without remotes, levers, or knobs. Just grab your bike and GiddyUp.

Frame Specifications

Rear Travel: 170mm

Front Travel: 170mm

Wheel size: 29"

Sizes: SML, MED, LGE, XLG

Rear Shock Size: 205mm x 65mm

Rear Brake Mount: 180mm post mount, max rotor size 223mm

Derailleur hanger: SRAM UDH

Seatpost diameter: 31.6mm

Other: Can use lower shock mount adjustment chip for optional 27.5 rear wheel.

COLOR OPTIONS	Graphite Grey   Bonfire Red
FRAME	Repeater PT Carbon 170mm
WHEEL SIZE	29"
DRIVE UNIT	SRAM Eagle Powertrain (90nm)
BATTERY	SRAM Eagle Powertrain Full-Size (720wh)
DISPLAY	SRAM Eagle Powertrain AXS Bridge
ASSIST SWITCH	SRAM POD Bridge MMX
REAR SHOCK	Rockshox Vivid Select+ (205x65mm)
FORK	Rockshox ZEB Select (170mm)
HEADSET	FSA NO.55R/44
STEM	ANVL Swage (40mm)
HANDLEBAR	ANVL Mandrel Alloy SM(800x20) MD/LG(800x30) XL(800x40)
GRIPS	ODI Elite Flow Lock-On
SADDLE	SDG Bel Air 3
SEATPOST	Rockshox Reverb AXS SM(150mm) MD/LG/XL(170mm)
BRAKES	SRAM Code Bronze Stealth
ROTORS	SRAM HS2 (220mm)
SHIFTER	SRAM POD Bridge MMX
DERAILLEUR	SRAM GX AXS Eagle Transmission
CASSETTE	SRAM XS 1275 T-Type (10-52t)
CHAIN	SRAM GX Eagle Transmission
CRANK	SRAM GX Eagle E-MTB (160mm)
CHAINRING	SRAM XX T-Type Direct Mount 34t
CHAINGUIDE	Transition Integrated Top Guide
RIMS	DT Swiss H 1900 Spline
SPOKES	DT Swiss Hybrid 1
HUBS	DT Swiss Hybrid 370
TIRE/FRONT	Schwalbe Magic Mary, Super Gravity, Ultra Soft (2.4)
TIRE/REAR	Schwalbe Big Betty, Super Gravity, Soft (2.4)
INCLUDED	OneUp Components EDC Lite Tool SRAM Eagle Powertrain Charger SRAM AXS Battery Charger Tubeless Valves & Sealant
WEIGHT	52.9 lbs / 24.01 kg (Size MD)
	Specs are subject to change at any time. All complete bikes are 95% assembled and packaged for quick and easy final assembly, and as such, Transition Bikes is not able to make special request build spec changes or modifications to packaging.
