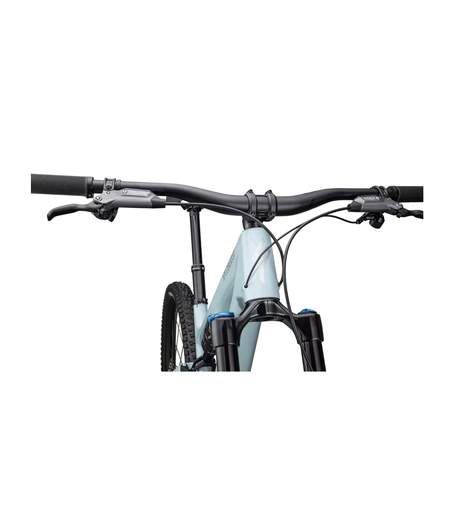

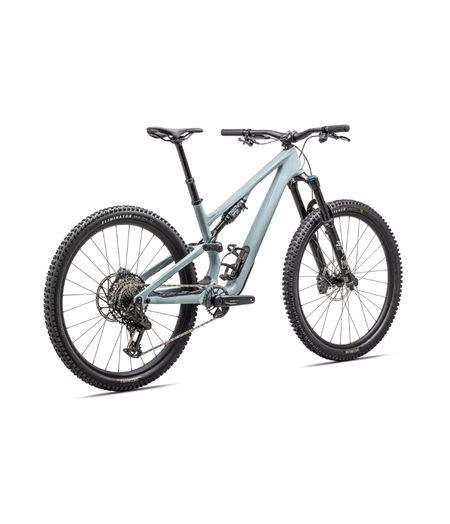

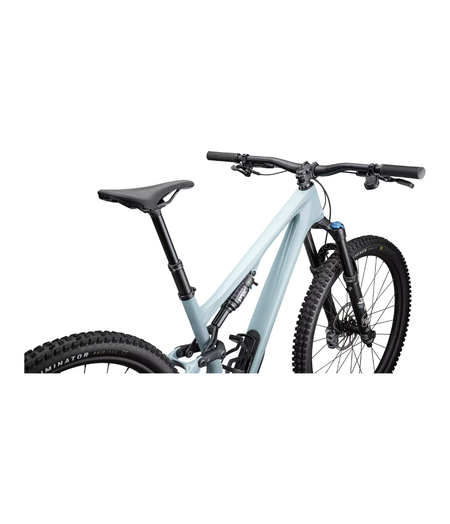

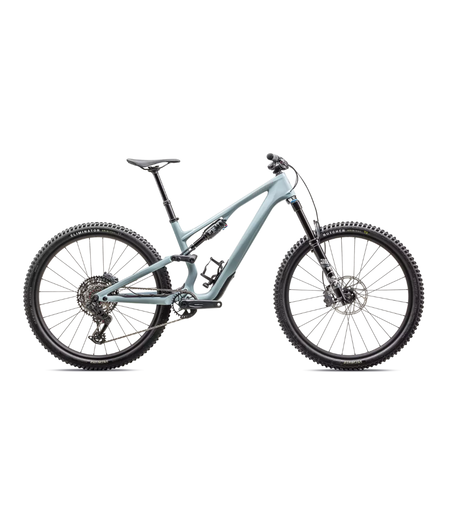

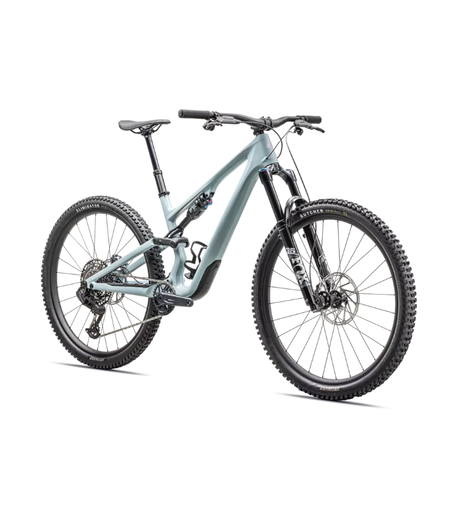

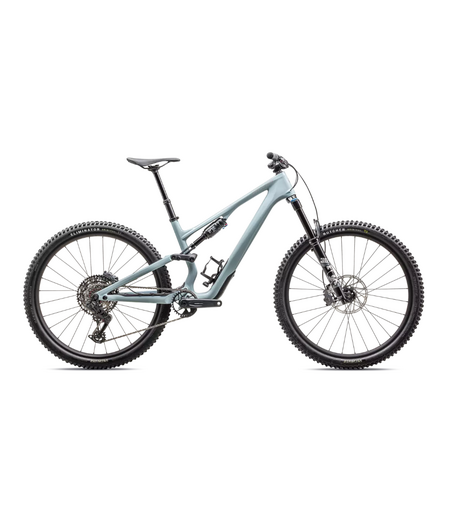

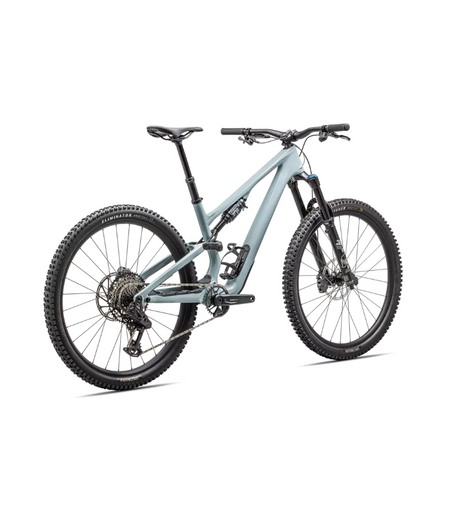

Stumpjumper 15 Comp Gloss Seafoam / Silver Dust
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information
“The Stumpjumper 15 with GENIE gives me the benefits of a big travel bike and the benefits of a short travel bike in one.” ~ Allan Cooke
Stumpjumper 15 is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.
BREAKTHROUGH CAPABILITY: GENIE Shock Technology combines a poppy, playful ride with a bottomless DH feel.
ULTIMATE CONTROL: Measurably better traction than “Bike of the Year” Stumpjumper EVO.
UNMATCHED PERSONALIZATION: Six-way geometry adjustment, mixed wheel or 29”, tunable spring curve, and more.
GENIE—The Magic Carpet Ride: The biggest innovation on the Stumpjumper 15 is GENIE. This patent-pending air spring technology that we invented grants every trail rider’s three wishes: the feel and control of a coil spring, better bottom-out prevention than a standard air spring, and a tunable “platform” for a playful feel.
ILLUMINATING GENIE: GENIE combines the control-enhancing linear spring rate of a coil spring through the “bump zone” with the progressive spring rate of an air spring at the end of the stroke to avoid bottom-outs. Truly, it's the best of both worlds – coil and air – with extra tunability. Say goodbye to compromises and hello to the future of riding.
WHAT BUMP?: With 16.3% better bump force management than a traditional air-sprung shock, GENIE makes the Stumpy 15 ride like a bike with more travel. For example, the Stumpjumper 15 (with 145 mm rear wheel travel) and our Enduro (170 mm travel) both use 101 mm of travel to absorb a 1080 N bump force.
TRACTION GALORE: Extensive field testing proves that Stumpjumper 15 with GENIE delivers 57% better traction than a standard air-sprung shock because GENIE technology gives you supple, coil-like performance, which keeps the wheel in contact with the ground a greater percent of the time than a typical air spring would.
BYE, BYE, BOTTOM-OUTS: 39% fewer bottom-outs than a standard air spring. During big hit events, you benefit from the rising rate in the last 30% of the GENIE stroke. Because of this two-stage, pronounced rising rate, GENIE reduces the frequency and severity of bottom-outs.
HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.
RIDE YOUR WAY: The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket height can be fine-tuned for stability or clearance.
WHEEL CHOICE: With our aftermarket shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.
CARRY IT ALL: SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. It’s the smoothest operating, most weather-resistant, flush-mounted system ever.
MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we've got you covered.
- Lightweight FACT 11m carbon chassis and rear-end
- Robust Specialized alloy wheels with sealed cartridge bearings
- Ride Dynamics tuned FOX FLOAT Performance with Specialized GENIE patent-pending air spring technology provides maximum grip and traction found in a linear coil spring, bottom-out prevention found in a progressive air spring, and the ability to tune mid-stroke and end-stroke support independently. 2-position open and firm damper adjustments.
- Eat up the chunkiest trails with the FOX FLOAT 36 Rhythm fork with GRIP damper
- Smooth and precise shifting from SRAM Eagle T-Type AXS drivetrain
- Big braking power from SRAM Maven Bronze 4-piston brakes
- Trustworthy time and time again X-Fusion Manic dropper post
- Lifetime replacement of suspension pivot bearings to the original owner
- Compatible with electronic drivetrains only
Specifications
- SWAT
- SWAT 4.0 internal downtube storage
- Frame
- FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
- Seat Binder
- Alloy, 38.6mm
- Fork
- FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, S1:140mm of travel, S2-S6:150mm of travel
- Rear Shock
- FOX FLOAT Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment, S1:210x52.5mm, S2-S6:210x55mm
- Stem
- Alloy Trail Stem, 35mm bar bore
- Saddle
- Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm

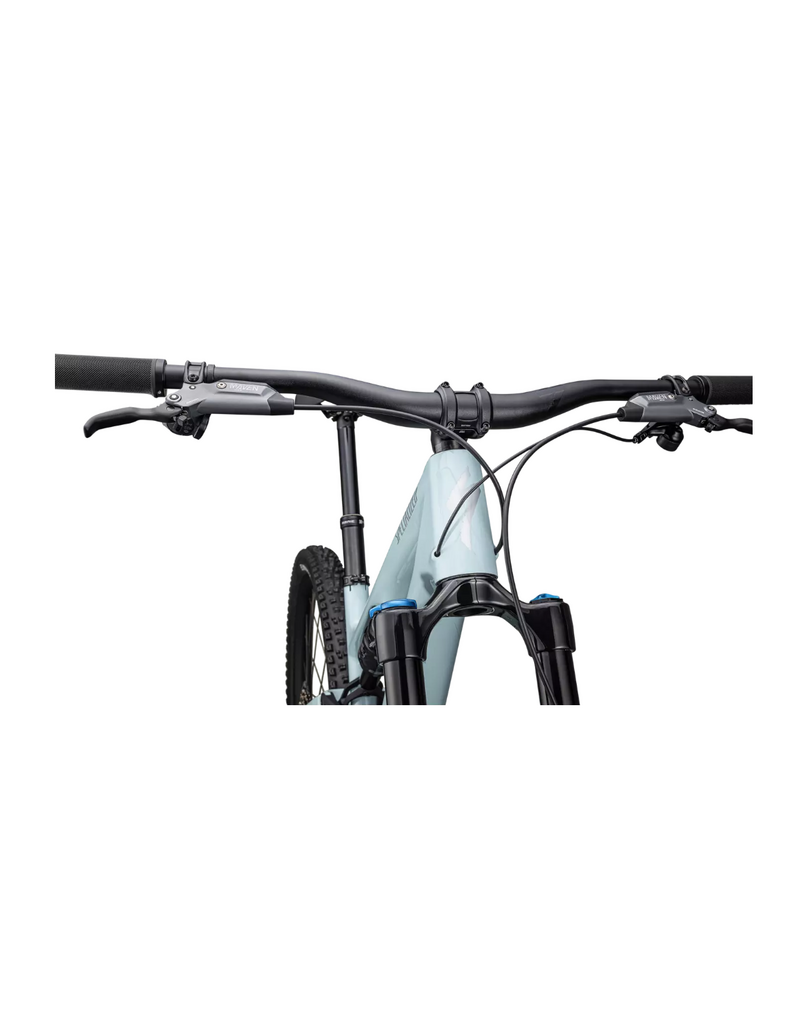

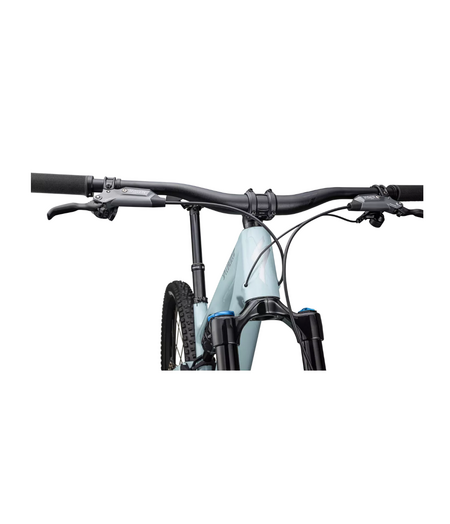

- Handlebars
- Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S4: 800 width, 30mm rise: S5-S6: 800 width, 40mm rise
- SeatPost
- X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 190mm
- Grips
- Specialized Trail Grips
- Front Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm
- Rear Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 200mm
- Chain
- SRAM GX Eagle Transmission Flattop Chain
- Cassette
- SRAM XS-1270 Transmission Cassette, 12spd, 10-52t
- Bottom Bracket
- SRAM DUB, BSA 73mm Wide, Threaded
- Shift Levers
- SRAM AXS POD Controller
- Crankset
- SRAM S1000 Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm
- Rear Derailleur
- SRAM S1000 Eagle Transmission Derailleur
- Rear Hub
- Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Spokes
- DT Swiss Industry
- Rear Tire
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, S1-S2: 27.5x2.3, S3- S6: 29x2.3"
- Rims
- Specialized, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: S1-S2:27.5, S3- S6:29
- Inner Tubes
- Standard, Presta valve
- Product ID
- 221395
- Weight
- 14.87kg (32 lb, 12.5 oz)
- Weight Size
- S4
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165 | 165 | 165 | 170 | 170 | 170 |
Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
Seatpost Length | 125 | 150 | 170 | 190 | 190 | 190 |
Stack | 608 | 618 | 627 | 640 | 654 | 667 |
Reach | 400 | 425 | 450 | 475 | 500 | 530 |
Headtube Length | 95 | 100 | 110 | 125 | 140 | 155 |
Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
BB Height | 334 | 337 | 337 | 337 | 337 | 337 |
BB Drop | 41 | 38 | 38 | 38 | 38 | 38 |
Trail | 129 | 130 | 130 | 130 | 130 | 130 |
Fork Length (full) | 551 | 561 | 561 | 561 | 561 | 561 |
Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
Front Center | 720 | 751 | 780 | 812 | 843 | 879 |
Chainstay Length | 430 | 432 | 435 | 435 | 445 | 445 |
Wheelbase | 1149 | 1181 | 1213 | 1244 | 1285 | 1322 |
Top-tube Length (horizontal) | 541 | 573 | 595 | 624 | 647 | 677 |
Bike Standover Height | 738 | 751 | 745 | 745 | 745 | 751 |
Seat Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
Seat Tube Angle | 78 | 77 | 77 | 76.5 | 76.5 | 76.5 |
Saddle Height for Effective ST Angle | 645 | 690 | 735 | 780 | 825 | 870 |
Max Seatpost Insertion | 245 | 245 | 255 | 255 | 285 | 285 |
Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
