Stumpjumper 15 Rear Shock Mounting Hardware Kit
$39.95
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information

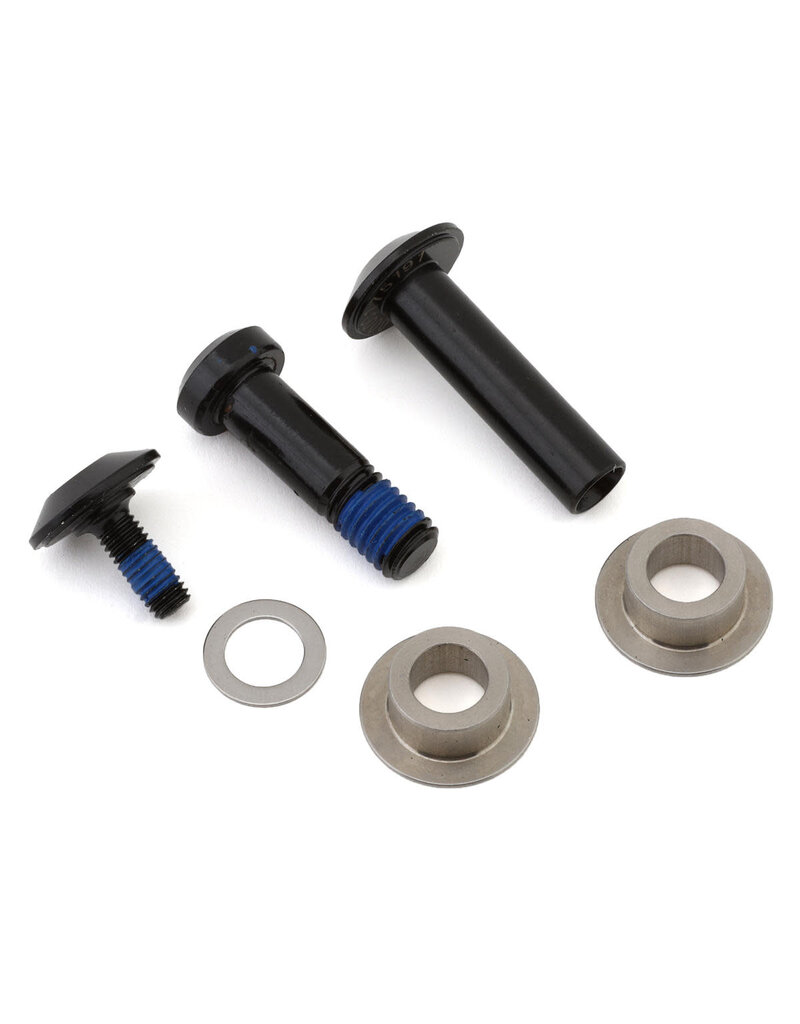

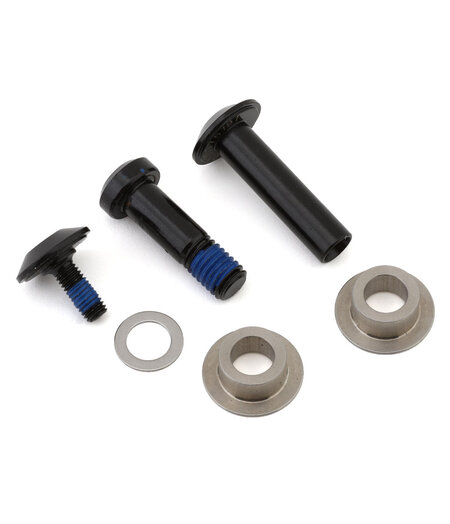

Rear shock mounting bolt kit for 2025 Stumpjumper 15 bikes.
- Forward Shock Eye Axle: 8m OD x 31.2mm - Steel - Torque: 49 in-lbf (5.5 Nm) - 1 pcs.
- Forward Shock Eye Bolt: M5x8.0 x 13.45mm - Steel - Torque: 49 in-lbf (5.5 Nm) - 1 pcs.
- Rear Shock Bolt: M8x1.25 x 27mm W - Steel - Torque 177 in-lbf (20 Nm) - 1pcs.
- Rear Shock Bolt Washer: 8.4mm ID x 13mm OD x 0.5mm W - Steel - 1 pcs.
- Rear Shock Eyelet Spacer: 8.1mm ID x 19mm OD x 0.6mm W - Steel - 2 pcs.
- Upper eyelet spacers not included, but can be sourced from shock manufacturer's (Dimensions: M8x25mm)
