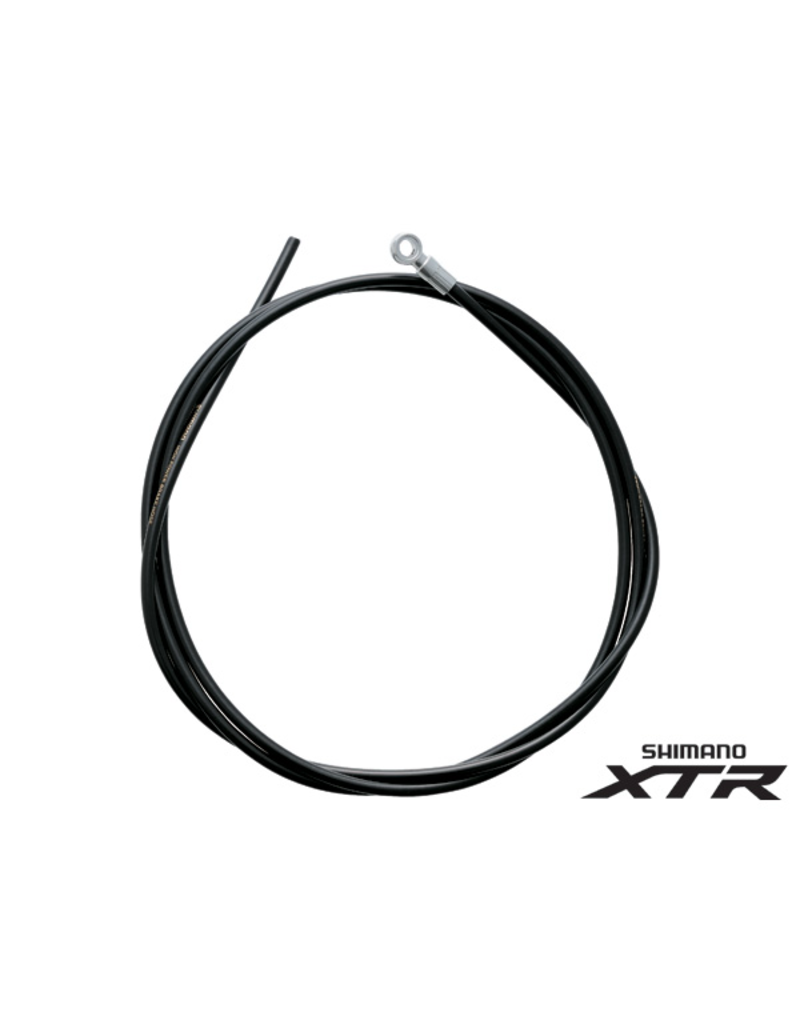

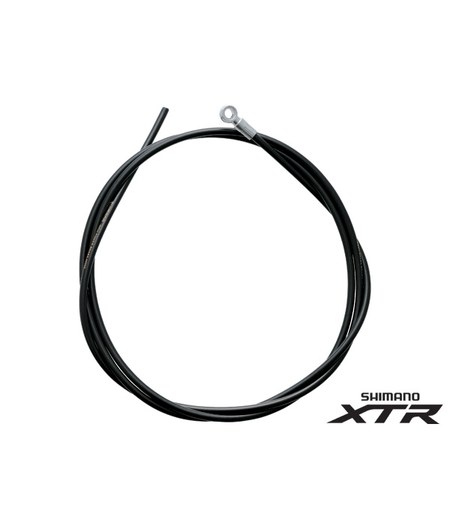

SM-BH90 DISC BRAKE HOSE 1700mm BLACK (XTR, XT, Deore, SLX)

Detail Information

Disc Brake Hose Kit To Complete Your Build

Make sure your brakes are good to go with this Shimano SM-BH90-SBM Disc Brake Hose kit to complete your build. The hose is 1700mm in length and has a Banjo Bolt on one end. The other end is straight cut. It comes with all of the necessary O-rings / Insert / Olive and Cable Clamping Blocks required for installation. All you need are the tools. Wrapped with anti-corrosion treatment and suitable for either front or rear brakes, this hose is compatible with magnesium calipers/levers like the XTR M9000 / M9020.

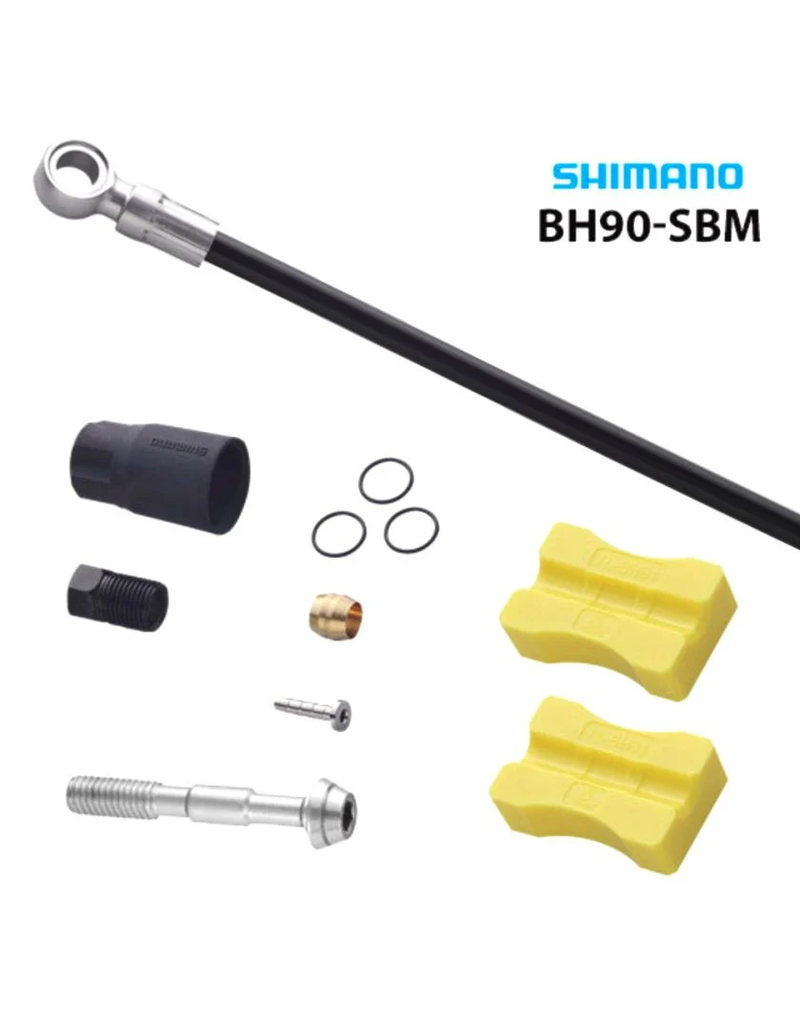

Box Contents

1 x 1700mm length hose with banjo bolt 2 x Clamping blocks 1 x Olive 3 x O-rings 1 x Insert plus misc. mounting hardware

Do Not Reuse Parts

Do not reuse the Olive piece or the Connector Insert when reinstalling. A damaged or reused olive, or connector insert, may not provide a secure brake hose connection, possibly causing the brake hose to disconnect from the calipers or brake lever. If the brake hose becomes disconnected, there is danger that the brakes may suddenly stop working.

Cutting The Brake Hose

Cut the brake hose so that the cut end is perpendicular to the length of the hose. If the brake hose is cut at an angle, fluid leaks may result.

• Genuine Shimano SM-BH90-SBM replacement disc brake hose

• 1700mm Hose Kit with installation accessories

• XTR BR-M9000 and BR-M9020 compatible

• Suits magnesium calipers/levers like the XTR M9000 / M9020

• Banjo Bolt on one end, straight cut on the other end

• O-rings, Insert, Olive and Cable Clamping Blocks supplied

• Special surface treatment helps prevent corrosion

• Works on front or rear brakes

Specifications

• Item: Brake Cable/Housing

• Series: XTR, XT, Deore, SLX

• Connection: Straight - Banjo

• Length: 1700mm

• Weight: 30g (hose)

• Weight: 50g (hose & parts)

• Country of Manufacture: Japan

• Warranty: 2 years against defects in materials or workmanship

Compatible With

BL-M9000/BR-M9000, BL-M9020/BR-M9020

BL-M988, BL-M988-B, BL-M985/BR-M985

BL-M987/BR-M987

BL-M785, BL-M785-B/BR-M785

BL-M675, BL-M675-B/BR-M675

BL-M666/BR-M666

BL-T785, BL-T785-B/BR-T785

BL-S700, BL-S700-B/BR-S700
