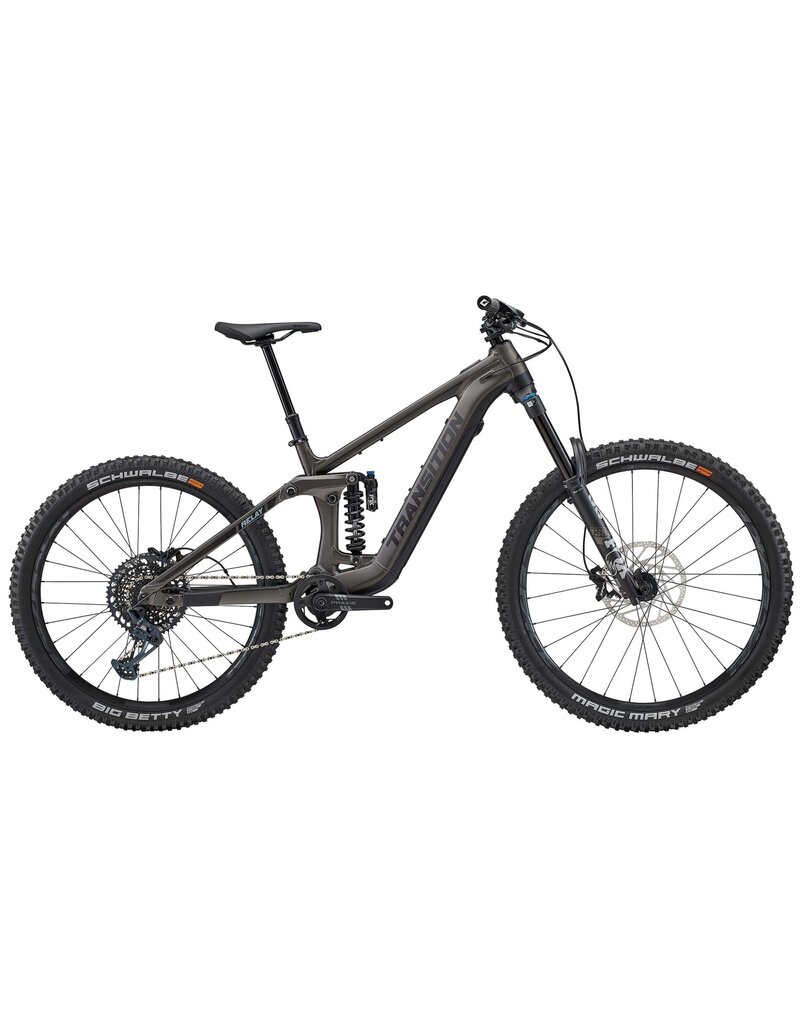

Relay PNW Alloy GX Oxide Grey

Detail Information

The Mountain Bikers eMTB

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.

We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.

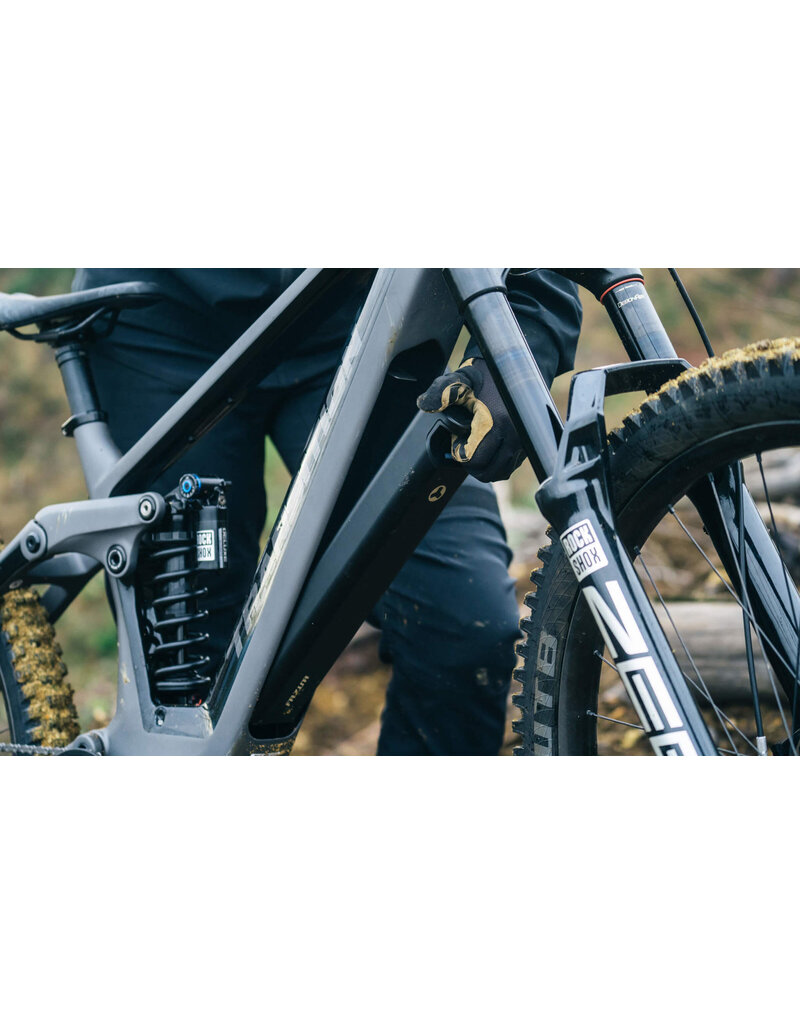

Giddy-Up Suspension Design

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

The GiddyUp suspension layout provides 160mm of travel from a 205 x 60mm shock, or 170mm of travel from a 205 x 65mm shock, and is tuned to work correctly with both air and coil. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom out control with air or coil shocks when things get rowdy.

With nearly 26% progression and an E-bike specific version of our GiddyUp suspension kinematic, the Relay has an excellent balance of support and small bump sensitivity. The Relay suspension is tuned for maximum traction that enhances both descending and climbing experiences, while delivering a bottomless ride feel.

A suggested sag range of 28 - 34% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode, to a more supple and active full on party mode. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.

Frame Specifications

Rear Travel: 170mm (Compatible with 160mm)

Front Travel: 170mm (Compatible with 160mm single crown fork)

Wheel size: 29" front / 27.5" rear

Sizes: XSM, SML, MED, LGE, XLG, 2XL

Rear Shock Size: 205mm x 65mm (Compatible with 205mm x 60mm)

Rear Brake Mount: 180mm post mount, max rotor size 223mm

Derailleur hanger: SRAM UDH

Seatpost diameter: 31.6mm

COLOR OPTIONS	Oxide Grey   TR Blue
FRAME	Relay Alloy 170mm
WHEEL SIZE	Mixed (X-Small 27.5")
DRIVE UNIT	Fazua Ride 60
BATTERY	Fazua Energy 430 Take Out
REAR SHOCK	Fox DHX Coil Factory (205x65mm) XS/SM(350lb) MD(400lb) LG(450lb) XL(500lb) XXL(550lb)
FORK	Fox Float 38 Performance Elite (170mm)
HEADSET	FSA No.55R
STEM	ANVL Swage (40mm)
HANDLEBAR	ANVL Mandrel Alloy 35 XS/SM(800x20) MD/LG/XL(800x30) XXL (800x40)
GRIPS	ODI Elite Flow Lock-On
SADDLE	SDG Bel Air 3
SEATPOST	OneUp Dropper Post XS(120mm) SM(150mm) MD(180mm) LG/XL/XXL(210mm)
BRAKES	TRP DH-R EVO
ROTORS	TRP R1 2.3 (223/203mm)
SHIFTER	SRAM GX Eagle Single Click
DERAILLEUR	SRAM GX Eagle
CASSETTE	SRAM XG 1275 (10-52t)
CHAIN	SRAM GX Eagle

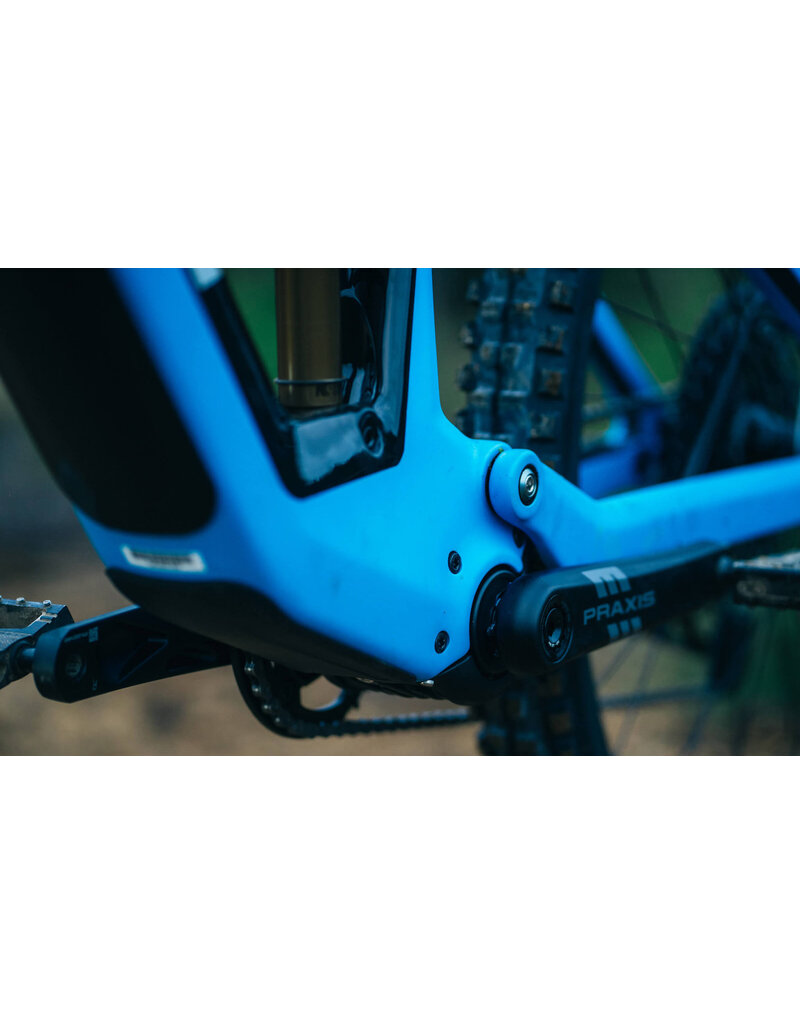

CRANK	Praxis Alloy ETOR (165mm, X-Small 160mm)
CHAINRING	Transition Bash Spider SRAM 32t Alloy E Ring (T-Type/X-Sync2)
RIMS	RaceFace Aeffect R
SPOKES	RaceFace 2.0/1.7/2.0
HUBS	RaceFace Trace 28H
TIRE/FRONT	Schwalbe Magic Mary, Super Trail, Soft 2.4
TIRE/REAR	Schwalbe Big Betty, Super Trail, Soft 2.4
INCLUDED	Fazua Charger, Tubeless Valves & Sealant
WEIGHT	49.9 lbs / 22.63 kg (Size MD, Including Battery) 44.9 lbs / 20.36 kg (Size MD, Excluding Battery)
	Specs are subject to change at any time. All complete bikes are 95% assembled and packaged for quick and easy final assembly, and as such, Transition Bikes is not able to make special request build spec changes or modifications to packaging.
