Rail 7 Gen 3 Dark Prismatic
Pay for your purchase in four interest-free installments (due every two weeks).
Detail Information

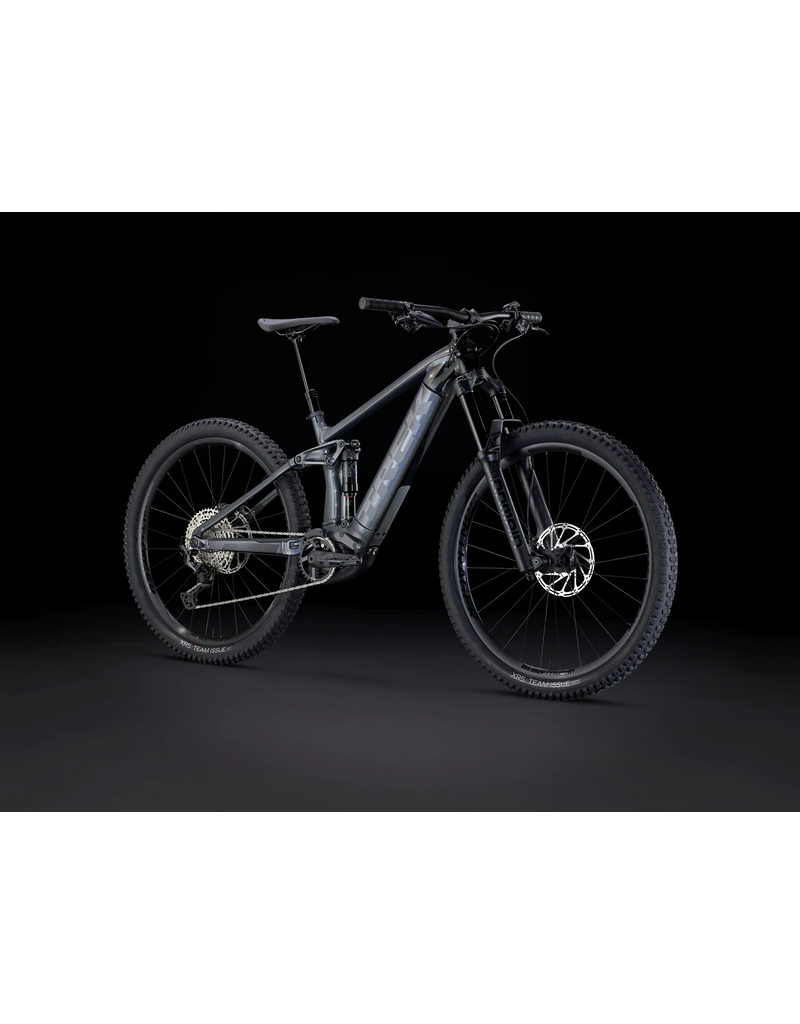

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, an upgraded fork, drivetrain, battery and more, plus a powerful Bosch drive system that's basically like having your own shuttle.
It's right for you if...
You’re looking for a trail-specific e-MTB that’s designed to tackle the same tough terrain as regular trail bikes. You already know just how amazing e-MTBs are on the mountain, and want to invest in better components.
The tech you get
A burly alloy frame with 150 mm of rear travel and a 625 Wh Removable Integrated Battery, a 160 mm RockShox Domain fork, the latest from Bosch with smart system Performance Line CX capable of speeds up to 20 mph (25 km/h in Europe), including a Bluetooth® LED remote for easy connectivity and activity tracking through the eBike Flow app. A smooth-shifting 1x12 Shimano SLX/XT drivetrain, dropper post, powerful Shimano 4-piston brakes for confident descents and Bontrager Line Comp 30 29er wheels that are already completely tubeless-ready, including sealant.
The final word
The Rail 7 features loads of upgraded parts, including the drivetrain, fork and wheels. Its long-range battery gives you all the power you want for packing in laps and miles of smiles.
Why you'll love it
- The Alloy Rail Gen 3 features Bosch’s smart system with an LED remote that connects to the Bosch eBike Flow app for over-the-air system updates, customised motor tuning and more

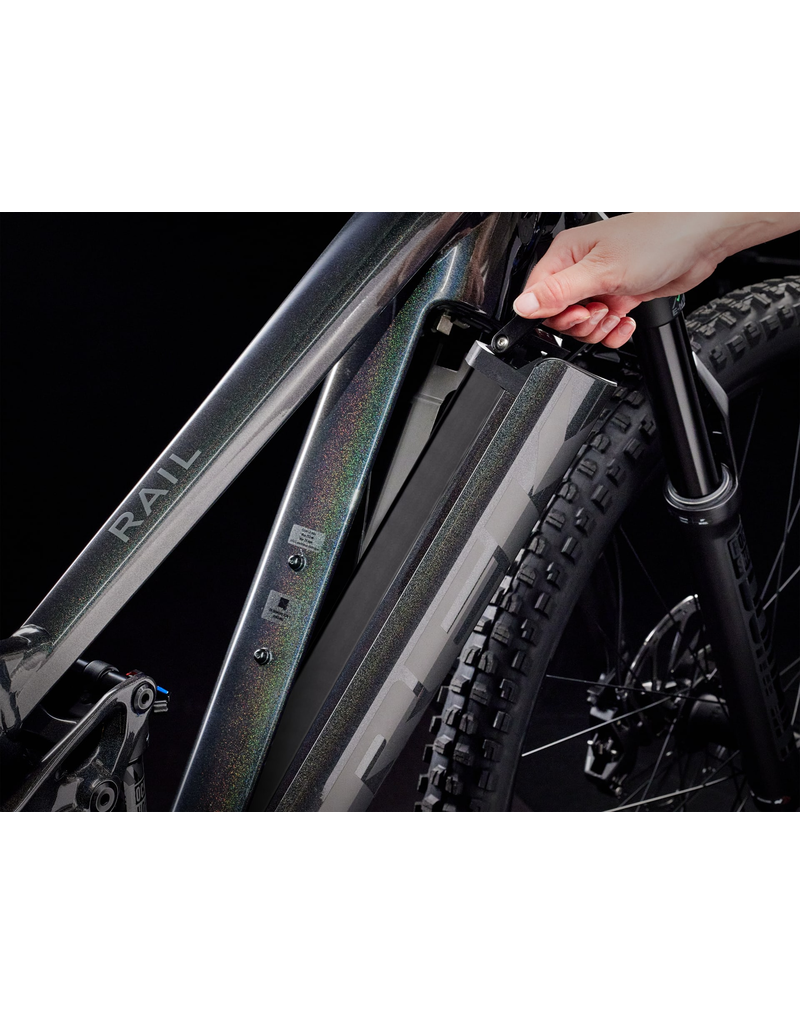

- Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage
- The Rail keeps your cockpit tidy by skipping a display, but smart system makes it easy to add one
- The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain
- Made with the same hard-charging frame tech as our amazing trail bikes, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
*Please note – spec applies to all sizes unless listed separately
| *Frame | Size: S Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
|---|---|
| Size: M, L, XL Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
|
| Fork | RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel |

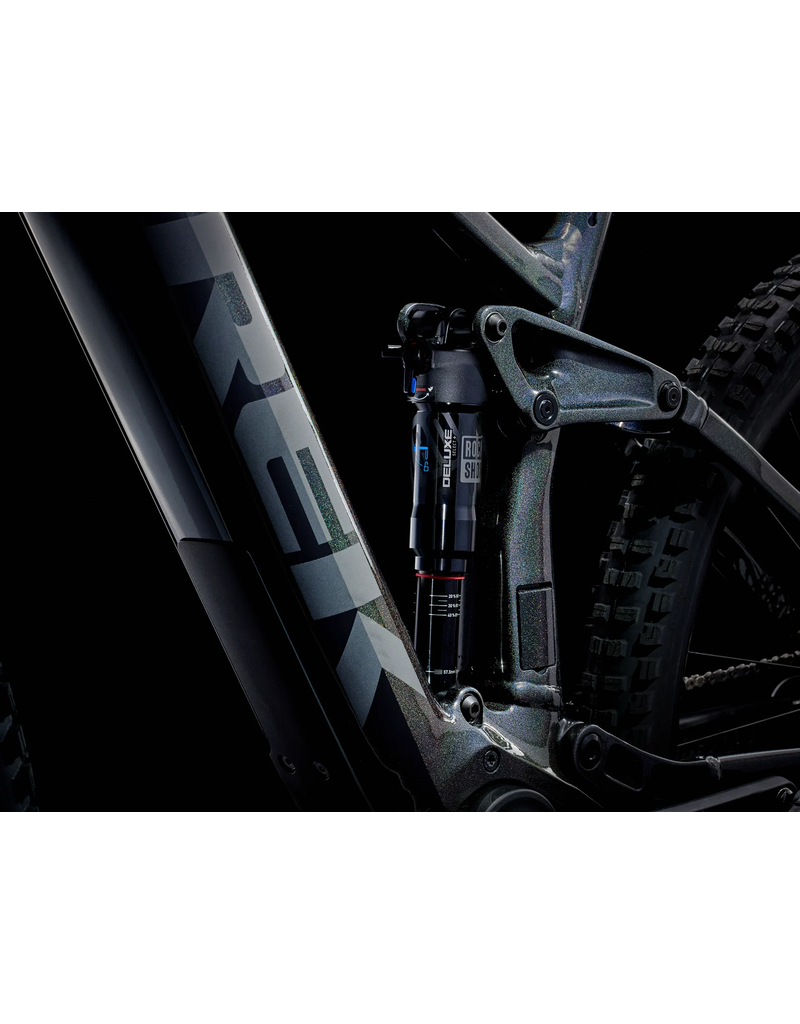

| Shock | RockShox Deluxe Select+ RT, 230 mm x 57.5 mm |
| Max compatible fork travel | 170mm (580mm axle-to-crown) |

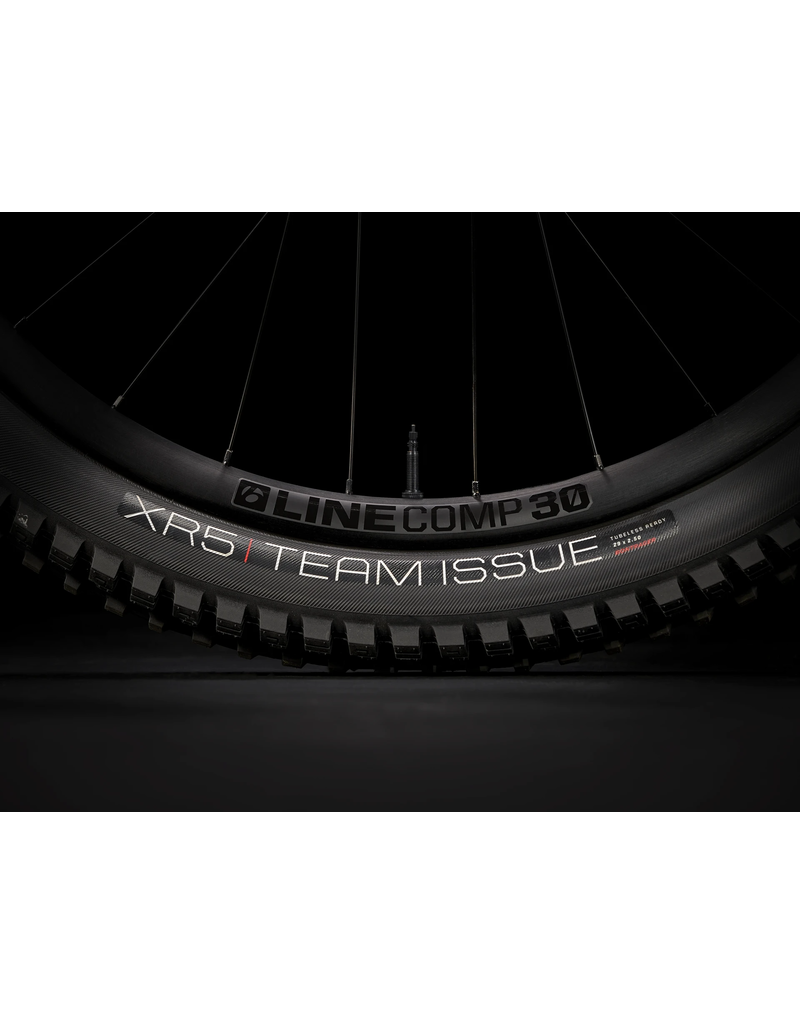

| Wheel front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Wheel rear | Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.60", Fork: See manufacturer |
| Shifter | Shimano SLX M7100, 12-speed |
|---|---|

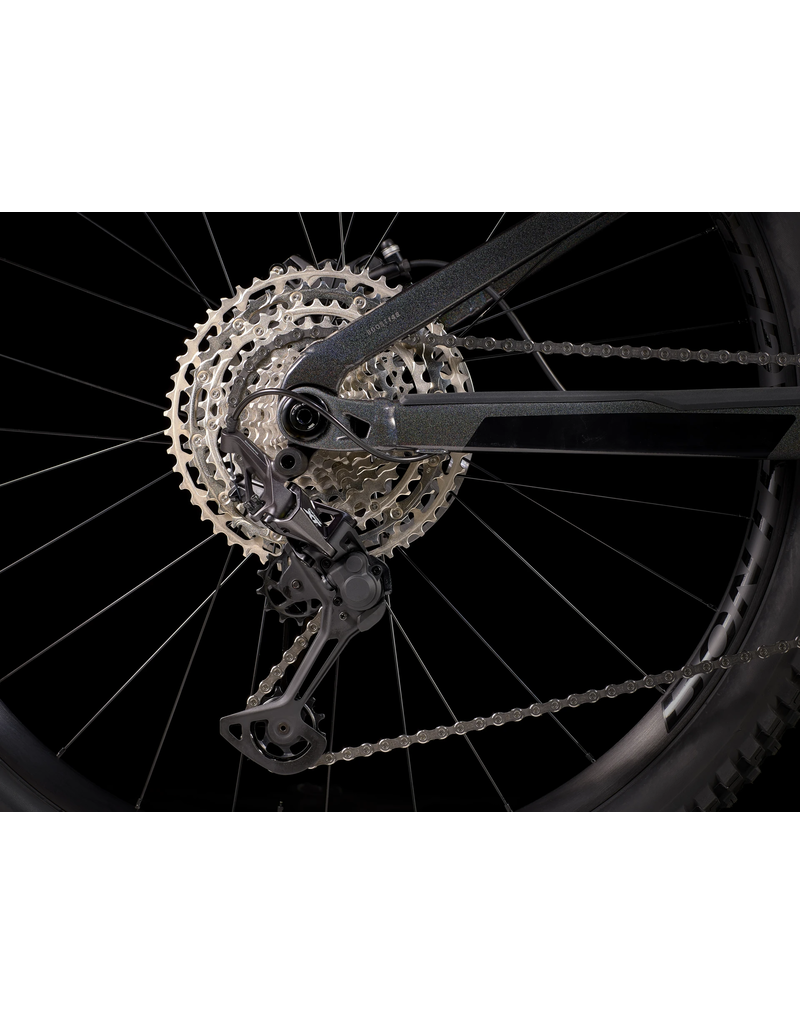

| Rear derailleur | Shimano XT M8100, long cage |
| Crank | E*thirteen E*spec Plus, 165 mm length |
| Crank arm | E*thirteen E*spec Plus, 34T, 160 mm length |
| Chainring | E*thirteen E*spec, 34T alloy, 55 mm chainline |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T |
| Saddle | Bontrager Verse P3, steel rails |
|---|---|
| *Seatpost | Size: S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| Size: M, L, XL TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length |
|
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
| Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Brake rotor | Shimano RT76, 6-bolt, 203 mm |
| Rotor size | Max brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer |
| Battery | Bosch PowerTube 625Wh, smart system |
|---|---|
| Charger | Bosch standard 4A, 230V, smart system |

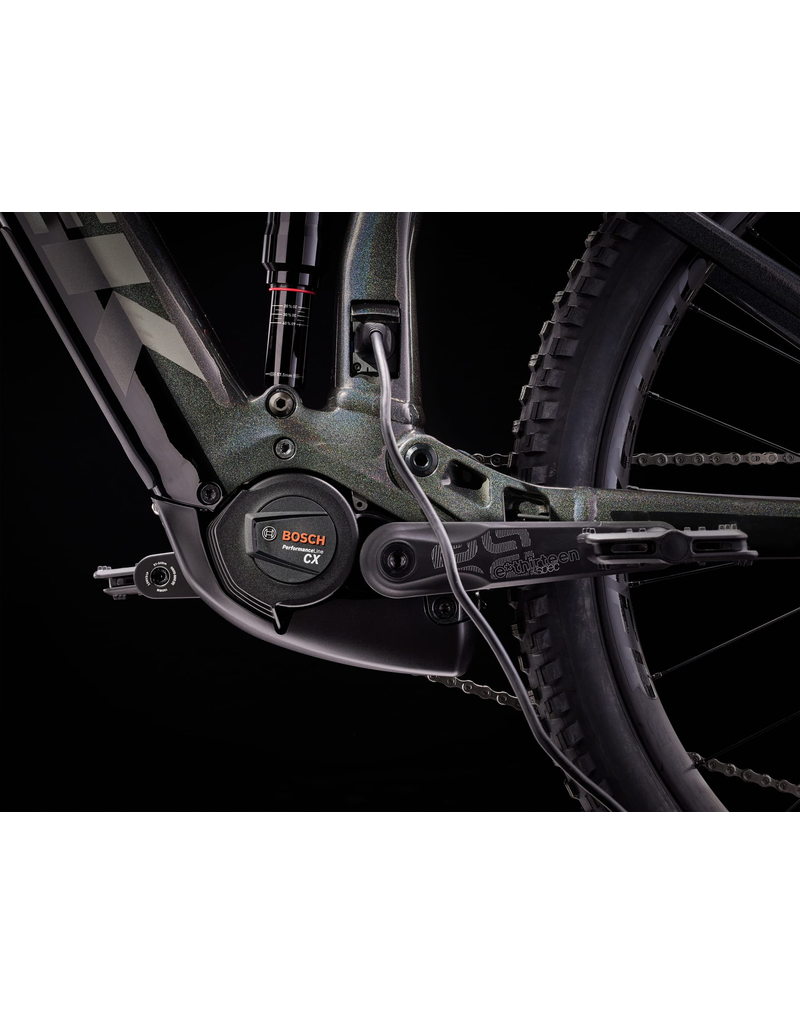

| Motor | Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm |
| Computer | Bosch LED remote, smart system |
| Weight | M – 24.73 kg/54.53 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
